ZS55 – TV-R Aerial Socket

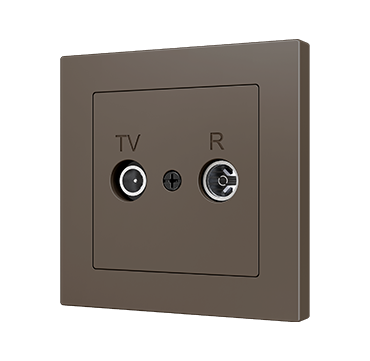

TV-R aerial socket (55 x 55mm)

REF: 8300014/40/48 + 15XX

ZS55 is Zennio’s 55 x 55 mm switches and sockets series. Timeless and elegant, flush fitting with the frame for a perfect combination with Flat 55 and Tecla 55 capacitive touch switches.

The range of TV-R outlets can handle frequencies from 5 to 2400 MHz.

Technical Characteristics TV-R Aerial Socket

  • Diameter: 12.5 mm
  • Frequencies range: 5-2400 MHz
  • Connection method: screw
  • Fixing mechanism: screw
  • Norms EN60728-11, EN50083-2 + A1, EN50581

References TV-R Aerial Socket (sold separately)

    • ZS55 – TV-R aerial socket – midpoint – ref. 8300014
    • ZS55 – TV-R aerial socket – endpoint – ref. 8300040
    • ZS55 – TV-R/SAT aerial socket – endpoint – ref. 8300048
    • Z555 – TV-R 55 x 55 mm cover – ref. 8300015XX
    • ZS55 – Frame – 1 module – ref. 9800001XX
    • ZS55 – Frame – 2 modules – ref. 9800002XX
    • ZS55 – Frame – 3 modules – ref. 9800003XX
    • ZS55 – Frame – 4 modules – ref. 9800004XX

XX = 05 (Anthracite) / 06 (Silver) / 09 (Matt white)
