Sensors - Presence

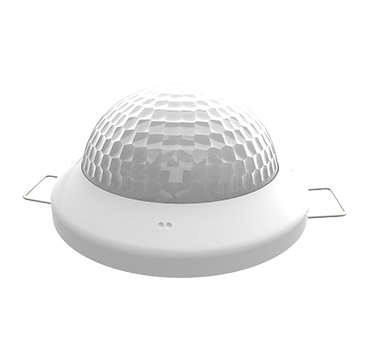

Presentia C
KNX presence detector with luminosity sensor for ceiling mounting
REF: ZPD-C30L
Presence detector with luminosity sensor for ceiling mounting, with a detection area of 360º and up to 30 meteres diameter. It includes several channels to be configured for constant luminiosity regulation, lighting switching control according to luminosity threshold or according to presence detection only. Sensitivity settings can be adjusted for each sensor individually and luminosity can be calibrated to the working environment values. Master/slave configuration allows using several detectors for larger areas. Flush mounted or surface mounted (accessory included).
Discontinued
Warning
IMPORTANT NOTE:The production of this product, Presentia C, has been discontinued, since it has been replaced by Presentia C v2 (Ref. ZPDC30LV2), including the same and even greater functionality. However, this discontinued device counts on all the support that may be required: manuals, databases, spare parts and technical support. Update ETS5/ETS6 with the last version to be able to import the product.
Application Program ETS
Only for ETS5/ETS6 (see Warning)
Technical Documentation
