KNX Products - Actuators

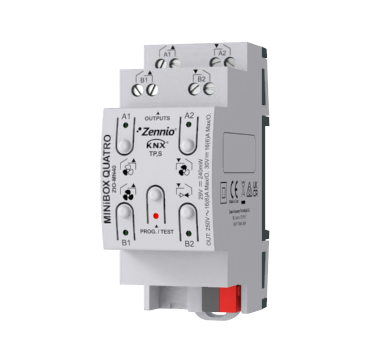

MINiBOX QUATRO

Multifunction actuator with 4 (16 A) outputs

REF: ZIO-MN40

Multifunction actuator for DIN rail (2 units) with 4 outputs (16 A C-load) which offer multiple configurations as shutter channels, individual outputs or even 2-pipe fancoil controller. It allows manual control of its outputs thanks to the push buttons on the cover and includes a logical function module.

Application Program ETS

Need an older version?

Only for ETS4/ETS5/ETS6 (see Warning).

Technical Documentation

Tools

2D File (DXF)

Accessories

Accessories not included+
- Shutter Coupler 2CH (Ref.ZAC-SHUC2C)
- Shutter Coupler 1CH (Ref.ZAC-SHUC1C)

Marketing Toolbox

Warning

IMPORTANT NOTE:
The production of this product, MINiBOX QUATRO, has been discontinued, since it has been replaced by MINiBOX 40 v2 (Ref. ZIOMN40V2), including the same and even greater functionality. However, this discontinued device counts on all the support that may be required: manuals, databases, spare parts and technical support.
Update ETS4/ETS5/ETS6 with the last version to be able to import the product.
