KNX Products - Actuators

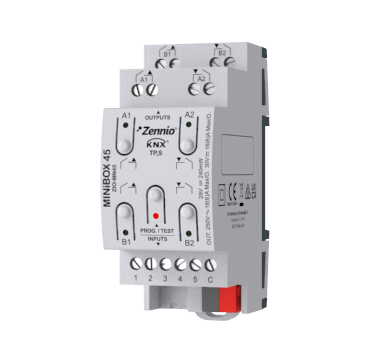

MINiBOX 45

Multifunction actuator with 4 outputs (16 A) and 5 analog-digital inputs

REF: ZIO-MN45

Multifunction actuator for DIN rail (2 units) with 4 outputs (16A C-load) which offers multiple configurations as shutter channels and individual outputs. It allows manual control of its outputs thanks to the push buttons on the cover and includes a logical function module. MINiBOX 45 also incorporates 5 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs, as well as four room thermostats to control heating/cooling systems.

Discontinued

Warning

IMPORTANT NOTE:
The production of this product, MINiBOX 45, has been discontinued, since it has been replaced by MINiBOX 45 v2 (Ref. ZIOMN45V2), including the same and even greater functionality. However, this discontinued device counts on all the support that may be required: manuals, databases, spare parts and technical support.
Update ETS4/ETS5/ETS6 with the last version to be able to import the product.

Application Program ETS

Only for ETS4/ETS5/ETS6 (see Warning)
