HVAC - Fan coil
MAXinBOX Hospitality

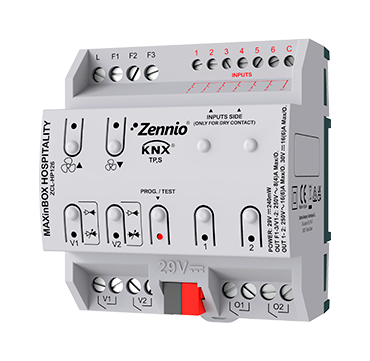

Fan coil Controller for 2/4-Pipe Units with 2 16 A C-load general purpose outputs and 6 binary/analog inputs
REF: ZCL-HP126
Fan coil controller for 2 or 4-pipes unit with 2-points valves or 3-points valve and up to three fan speeds, for DIN-rail (4.5 units). It includes 2 independent outputs 16 A C-Load, which can be configured as individual outputs or as a shutter channel. Moreover, it has 6 analog-digital multifunction inputs that can be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. It includes Master Light function, 10 logical functions and allows manual control of the outputs with status indication through LEDs. Accessories: temperature probe and motion sensor.
Discontinued
Warning
IMPORTANT NOTE: The production of this product, MAXinBOX Hospitality, has been discontinued, since it has been replaced by MAXinBOX Hospitality v3 (Ref. ZCLHP126V3), including the same and even greater functionality. However, this discontinued device counts on all the support that may be required: manuals, databases, spare parts and technical support.
Update ETS5/ETS6 with the last version to be able to import the product.
Update ETS5/ETS6 with the last version to be able to import the product.
Application Program ETS
Only for ETS5/ETS6 (see Warning).
