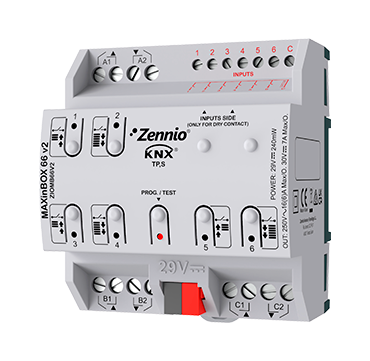

MAXinBOX 66 v2

Multifunction Actuator 6 Out. 16 A C-Load / 6 In.

REF: ZIOMB66V2

Multifunction sensor-actuator for DIN-rail (4.5 units) with 6 outputs (16 A C-load) which offer multiple configurations as shutter channels or individual outputs. It allows manual control of its outputs through the push buttons on the cover. It includes 10 independent logical functions. In addition, it incorporates 6 analogdigital inputs that may be configured as binary inputs for sensors and potentialfree push buttons, as temperature probe inputs or as motion sensor inputs. Four room thermostats to control heating/cooling systems are included.

Discontinued

Warning

IMPORTANT NOTE: The production of this product, MAXinBOX 66 v2, has been discontinued, since it has been replaced by MAXinBOX 66 v3 (Ref. ZIOMB66V3), including the same and even greater functionality. However, this discontinued device counts on all the support that may be required: manuals, databases, spare parts and technical support.
Update ETS5/ETS6 with the last version to be able to import the product.

Application Program ETS

Only for ETS5/ETS6 (see Warning).
