Lighting - LED/RGB lighting

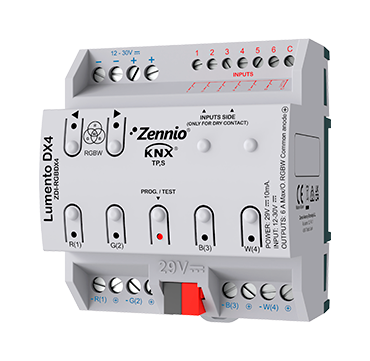

Lumento DX4

LED dimming 4 channels and DIN-rail mounting

REF: ZDI-RGBDX4

LED dimmer with 4 channels (RGBW or single channels) oriented to LED technology with constant voltage regulation and DIN-rail mounting (4.5 units). The dimming channels can be configured as 4 independent channels, 1 RGBW channel or 1 RGB channel + 1 individual channel. It includes 6 analog-digital multifunction inputs that can be configured as binary inputs for sensors and potential-free push buttons or as motion sensor inputs. It has manual test buttons to check the channels functioning. Power supply: 12-30 VDC. Maximum current per channel: 6 A. Accessories: motion sensor.

Discontinued

Warning

IMPORTANT NOTE: The production of this product, Lumento DX4, has been discontinued, since it has been replaced by Lumento DX4 v2 (Ref. ZDILDX4V2), including the same and even greater functionality. However, this discontinued device counts on all the support that may be required: manuals, databases, spare parts and technical support.
Update ETS5/ETS6 with the last version to be able to import the product.

Application Program ETS

Only for ETS5/ETS6 (see Warning).
