KNX Products - Actuators

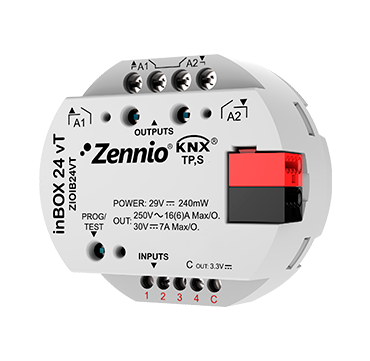

inBOX 24 vT
Multifunction actuator for flush mounting with 2 outputs (16 A C-Load) and 4 analog-digital inputs
REF: ZIOIB24VT
Multifunction actuator for flush mounting with 2 outputs (16 A C-Load) which offer multiple configurations as shutter channel or individual outputs. It allows manual control of its outputs and includes 1 thermostat, 10 independent logical functions and Master-Light function. In addition, it incorporates 4 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. Accessories: Temperature probes, motion sensor and AC/DC shutter adapters.
Discontinued
Warning
IMPORTANT NOTE: The production of this product, inBOX 24 vT, has been discontinued, since it has been replaced by inBOX 24 v3 (Ref. ZIOIB24V3), including the same and even greater functionality. However, this discontinued device counts on all the support that may be required: manuals, databases, spare parts and technical support.
Update ETS5/ETS6 with the last version to be able to import the product.
Update ETS5/ETS6 with the last version to be able to import the product.
Application Program ETS
Only for ETS5/ETS6 (see Warning).
Technical Documentation
Tools
Accessories
